Description
From the manufacturer

-

-

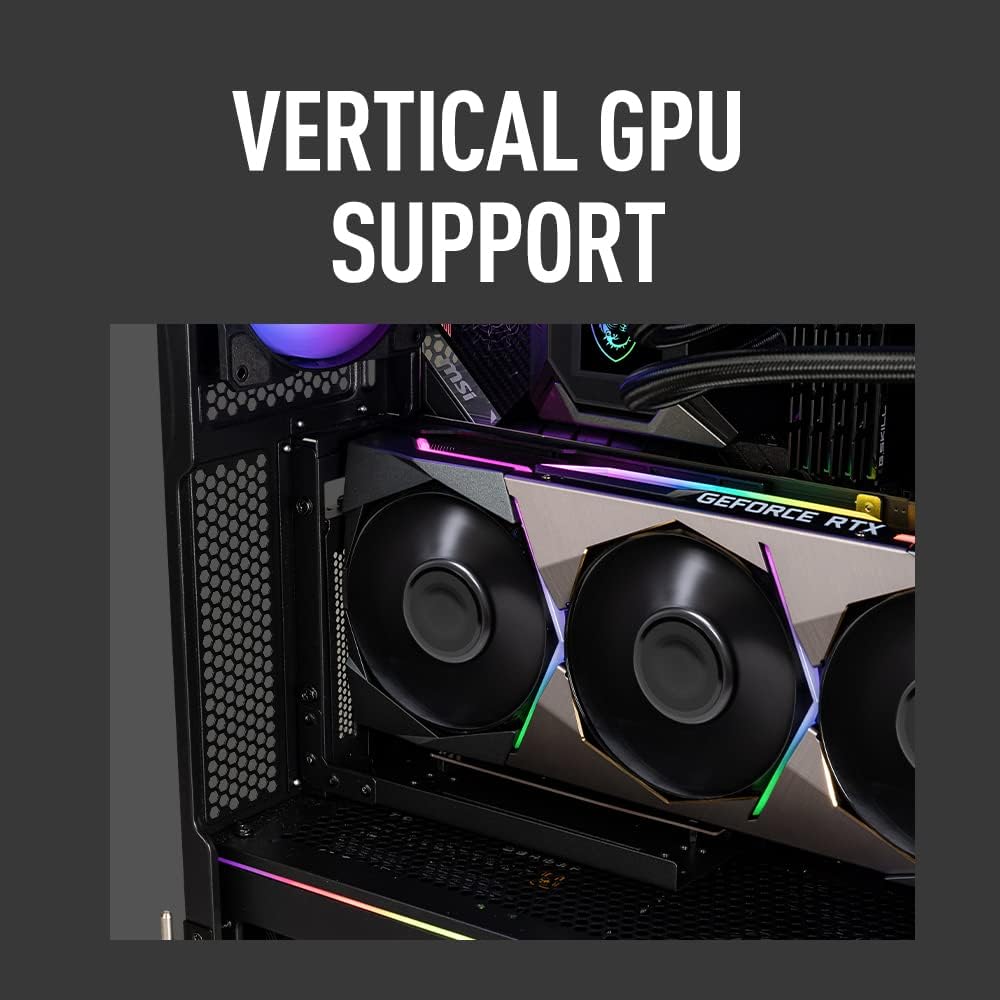

VERTICAL GPU MOUNT SUPPORT
A vertical GPU bracket is included that allows you to mount your graphics card vertically.
-

-

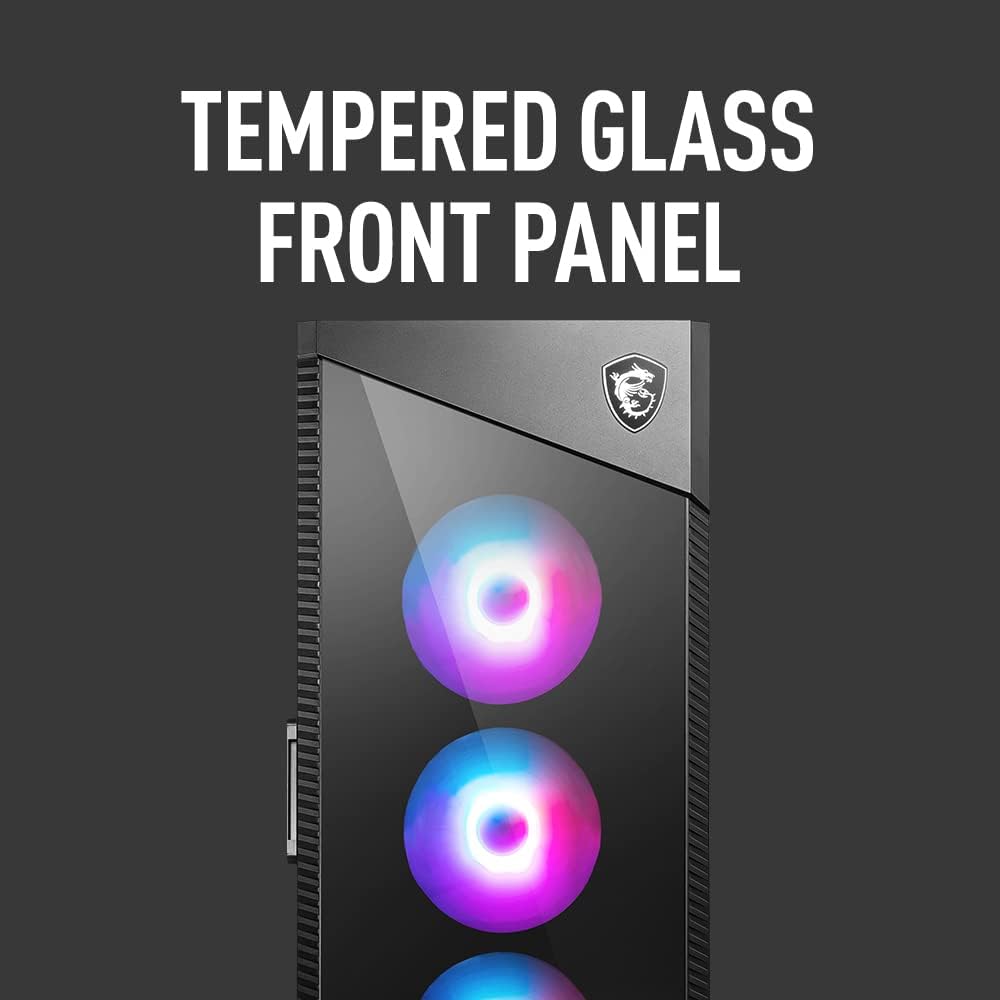

VENTILATED FRONT PANEL
The MPG VELOX 100R’s front panel consists of a tempered glass with ventilated sides.


SPACIOUS CLEARANCE
The MPG VELOX 100 Series provides excellent components clearance, capable of having 1 x 360mm radiator/3 x 120mm fans on both the top panel and the front panel.

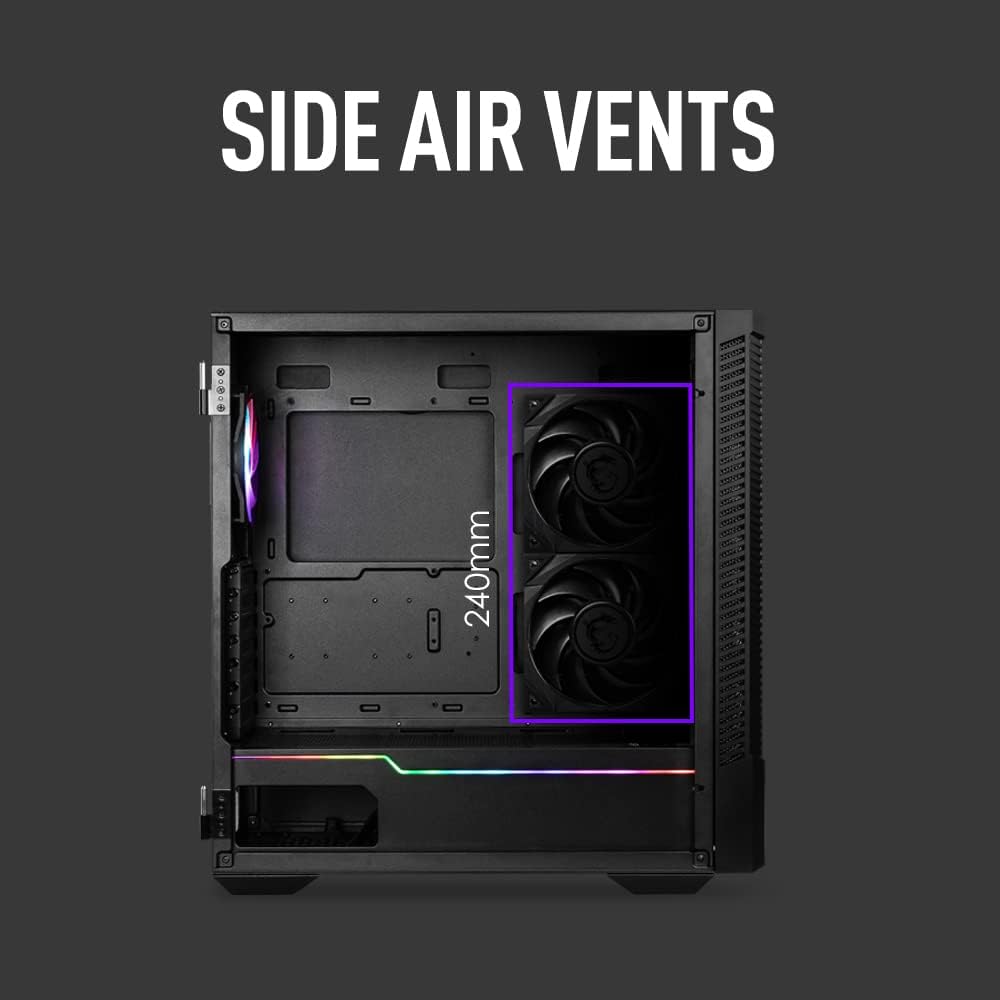

SIDE AIR VENTS
The MPG VELOX 100 Series comes with a side air vent that can support up to 2 fans / 240mm radiator.
*Installing fans or radiator on the side requires the front fans to be uninstalled first.
| Supported MB Form Factor | MPG VELOX 100R |
| Dimensions (L) x (W) x (H) | 474 x 231 x 490 mm / 18.7 x 9.1 x 19.3 inches |

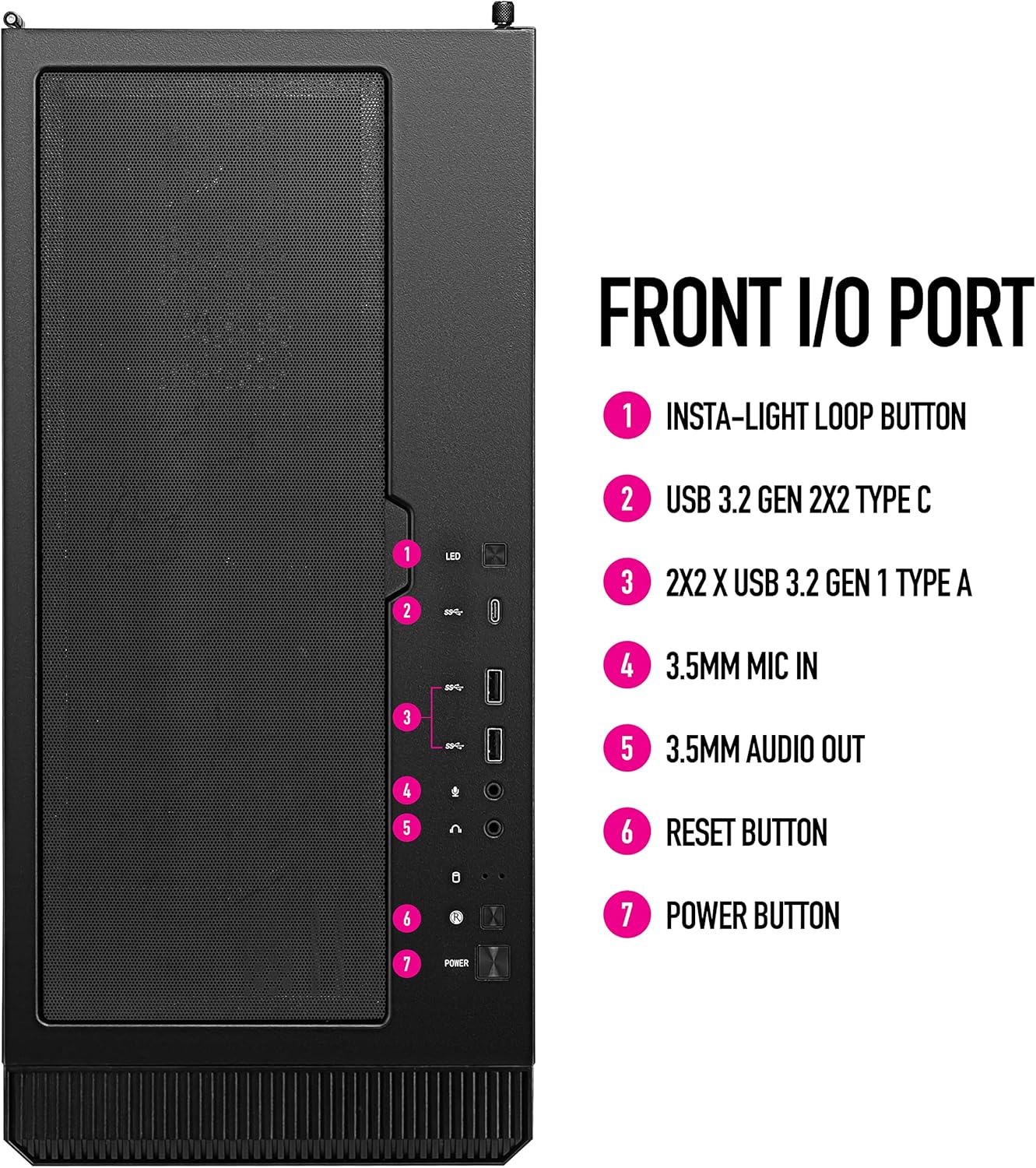

| I/O Ports | 2 x USB 3.2 Gen 1 / 1 x USB 3.2 Gen 2×2 Type C / 1 x Audio / 1 x Mic |
| Drive Bays | 2.5″ SSD x 2 / 3.5″ HDD x 2 |
| VGA Card Support | 380mm / 15inches |
| CPU Cooler Support | 175mm / 6.9inches |
| Power Supply | Standard ATX, max up to 220mm (without 3.5″ HDD tray installed) |
| Fan Layout | Front: 120mm x 3 or 140mm x 3 Top: 120mm x 3 or 140mm x 2 Rear: 120mm x 1 Side: 120mm x 2 |
| Liquid Cooler Layout | Front: 120 / 140 / 240 / 280 / 360mm Top: 120 / 140 / 240 / 280 / 360mm Rear: 120mm Side: 120 / 240mm |
